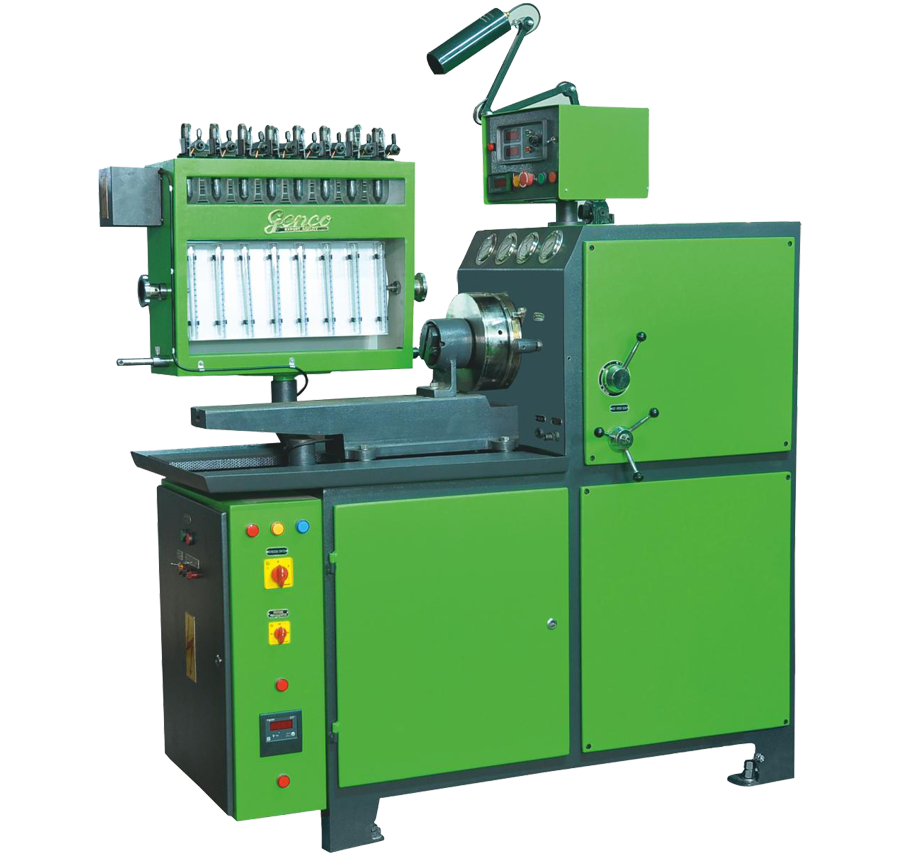

8 Cylinder Diesel Fuel Injection Pump Test Benches

Model : GEW / SD-8 / VSD

Drive Variator Drive
Main Motor 5 H. P., 3 Phase, 415V, 50 Cycles
No. of Cylinders 6, 8 Cylinders
Tachometer Electronic Digital 0-9999 R.P.M. with the accuracy of ± 1 R.P.M.
Stroke Counter 100-1200 Strokes (in steps of 100 strokes)
Fuel Supply By Soundless Gear Pump
Fuel Pump Motor 1 H. P., 3 Phase, 415 V, 50 Cycles
Pressure Gauge 0-100 lbs/in2 (0-7 kg/cm2)
0-500 lbs/in2 (0-35 kg/cm2)
0-200 lbs/in2 (0-14 kg/cm2)
0-30 ln/hg (0-760 mm/hg)
Speed Range and Control Infinitely variable in both direction by variator drive. Intermediate two speed gear box with neutral position speed range from 80 to 900 R.P.M. 300 to 3200 R.P.M.
Test Injectors 6, 8 Nos. Fitted with Calibrating Nozzle set at a standard pressure
Phasing Pressure phasing recorded on degree dial
Fuel Tank 45-50 Liters
