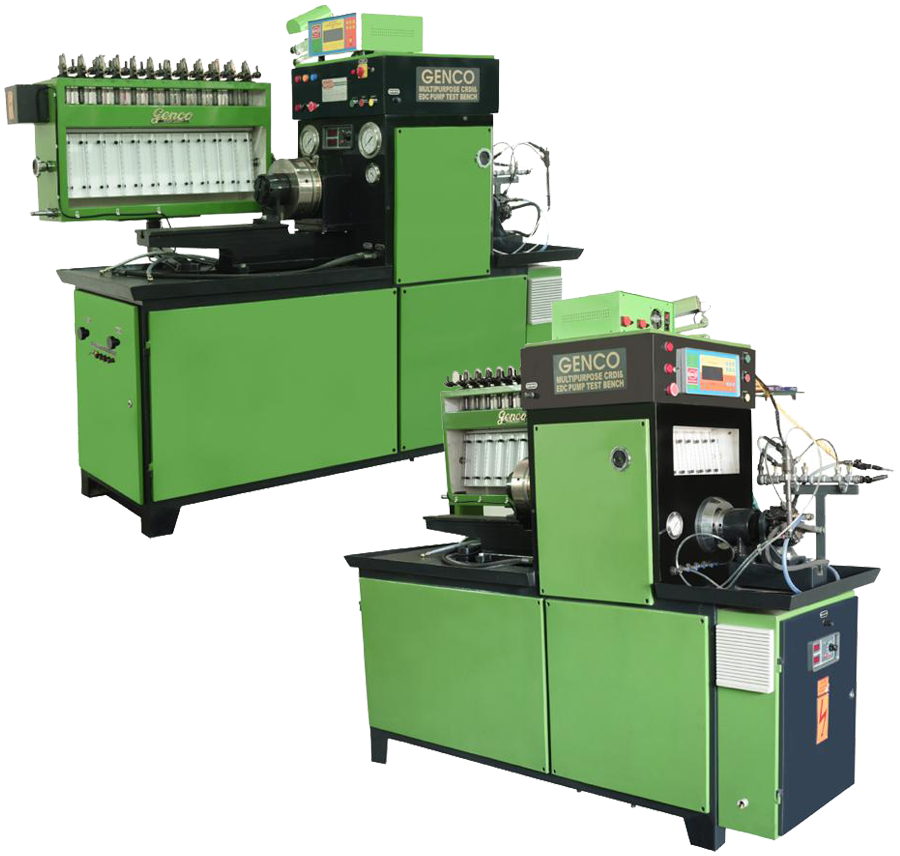

Multipurpose Common Rail Injector & Pump Test Benches

Model : Double Diamond CRDI & EDC

Drive A. C. Frequency Drive
Main Motor 10 H. P. & 5 H. P., 3 Phase, 415V, 50 Cycles in 12 Cylinder, 7.5 H. P. & 5 H. P., 3 Phase, 415V, 50 Cycles in 8 Cylinder
No. of Cylinders 12 & 8 Cylinders, 8 & 8 Cylinders
Tachometer Electronic Digital 0-9999 R.P.M. with the accuracy of ± 1 R.P.M. (Both Sides)
Stroke Counter 100-1200 Strokes (in steps of 100 strokes)
Fuel Supply By Soundless Gear Pump
Fuel Pump Motor 1 H. P., 3 Phase, 415 V, 50 Cycles
Pressure & Vacuum Gauge 0-100 lbs/in2 (0-7 kg/cm2)
0-600 lbs/in2 (0-42 kg/cm2), 0-300 lbs/in2 (0-21 kg/cm2
0-30 In/Hg2 (0-760 mm/Hg) & 0-300 lbs/in2 (0-21 kg/cm2 on other side
Speed Range 0-4000 R.P.M. in both directions CW & ACW
Test Injectors 12 Nos. in 12 cyl *amp; 8 Nos. in 8 cyl. Fitted with Calibrating Nozzle set at a standard pressure
Phasing Pressure Phasing recorded on degree dial
Phasing Fuel Tank 45-50 Liters
Simulator CRT-5000 & EDC 7000
