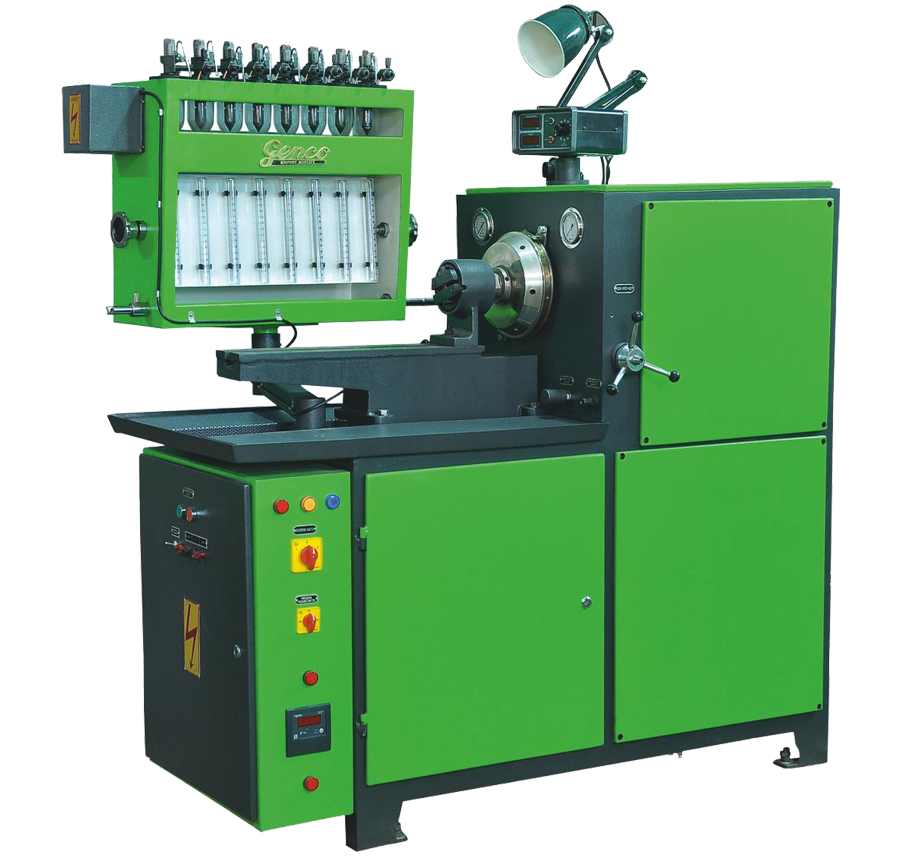

8 Cylinder Diesel Fuel Injection Pump Test Benches

Model : GEW / SD-8 / BSD

Drive Belt Drive
Main Motor 5 H. P., 3 Phase, 415V, 50 Cycles
No. of Cylinders 8 Cylinders
Tachometer Electronic Digital 0-9999 R.P.M. with the accuracy of ± 1 R.P.M.
Stroke Counter 100-1200 Strokes (in steps of 100 strokes)
Fuel Supply By Soundless Gear Pump
Fuel Pump Motor 1 H. P., 3 Phase, 415 V, 50 Cycles
Pressure Gauge 0-100 lbs/in2 (0-7 kg/cm2)
0-500 lbs/in2 (0-35 kg/cm2)
Speed Range and Control Infinitely variable in both direction by belt drive. Speed range from 100 to 3200 R.P.M.
Test Injectors 6, 8 Nos. Fitted with Calibrating Nozzle set at a standard pressure
Phasing Pressure phasing recorded on degree dial
Fuel Tank 45-50 Liters
