Nozzle Tester

With the help of our expert workforce, we are designing and developing a wide range of injector Nozzle Testers, model NMT 400 is the latest development. These are available in different specifications and can be customized to meet the exact requirement of our customers. Further, our range is offered at competitive prices.

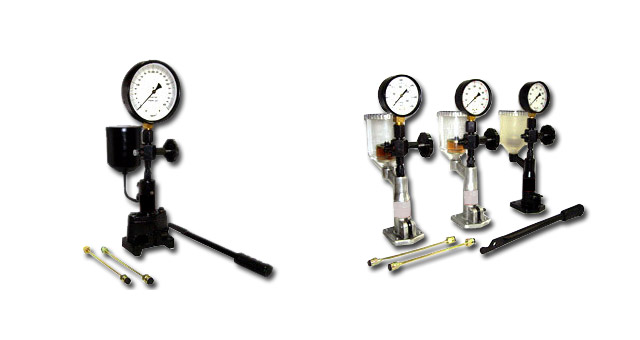

Model : NMT-400. This nozzle tester is based on old technology but sturdiest of all, cast iron single cylinder is working as a pump, mounted on rigid base of aluminium, which houses tappet roller, isolating valve, heavy duty 150 m.m pr. gauge 0 to 420 bar/6000 psi or kg/cm2 with 2 bar or kg/cm2 least count. Sheet metal oil container with filter.

Accessories

One handle, two high pr. pipes 'a' & 'b' type with m.m. size nuts (12x1.5) & (14x1.5), handle pin, 'o'rings-2 nos Packings: Duly packed in sea worthy thermocole & corrugated box.

Weight: 6.5 Kgm. of each nozzle tester with themocole packings.

Injector Nozzle Testers

Models looking from left:(first) NTH-6000 with heavy duty 100 m.m. dial pr. gauge with 0 to 400 bar/kg/cm2, die casted aluminum body, glass clear transparent oil container with 5 micron filter. Models looking from left:(second) NTL-6000 with medium duty, 100 m.m. dial pr. gauge with 0 to 400 bar/kg/cm2, die casted aluminum body, glass clear transparent oil container with 5 micron filter. Models looking from left: (third) NTJ-6000 with light duty, 100 m.m. dial pr. gauge with 0 to 400 bar/kg/cm2, sand casted cast aluminum body, glass clear transparent oil container with micron filter. We offer a wide range of injector nozzle testers for automobiles, marine and locomotive engines, which are made of superior grade metal to ensure durability and optimum performance at client's end. The applications of our range includes:

For testing injection nozzle opening pressure & chattering.

Leakage test & spray pattern

Atomization & chatter characteristic tests

Some of the features of our products are

Die casting aluminum alloy body, with carefully machined internal dimensions.

Injection pump with hand lever.

Acrylic transparent fuel container with filter.

Shut off valve to isolate the pressure gauge while operating hand lever at high speed.

Pressure gauge light and heavy duty.

High pressure pipes for connecting injectors.

Apart from this, the specifications of our range includes

Technical specification	Pressure gauge: 0-400 Kg/cm sq. (0-6000 psi)
Standard accessories	High pressure pipes (M12xM14)-2 nos, (M14xM14)-2 nos.
Models	NTL – 6000: Nozzle tester with light duty pressure gauge NTH – 6000: Nozzle tester with heavy duty pressure gauge
Dimensions	Thermocol packing case length 47 cms; width 27 cm; height 18 cm Weight of the machine with the thermocol packing case: 4.5 kgm

Accessories

One handle, two high pr. pipes 'a' & 'b' type with m.m. size nuts (12x1.5)&(14x1.5), handle pin, 'o'rings-2 nos Packing: Duly packed in sea worthy thermocole & corrugated box. Weight: 4.5 Kgm. Of each nozzle tester with themocole packings.
